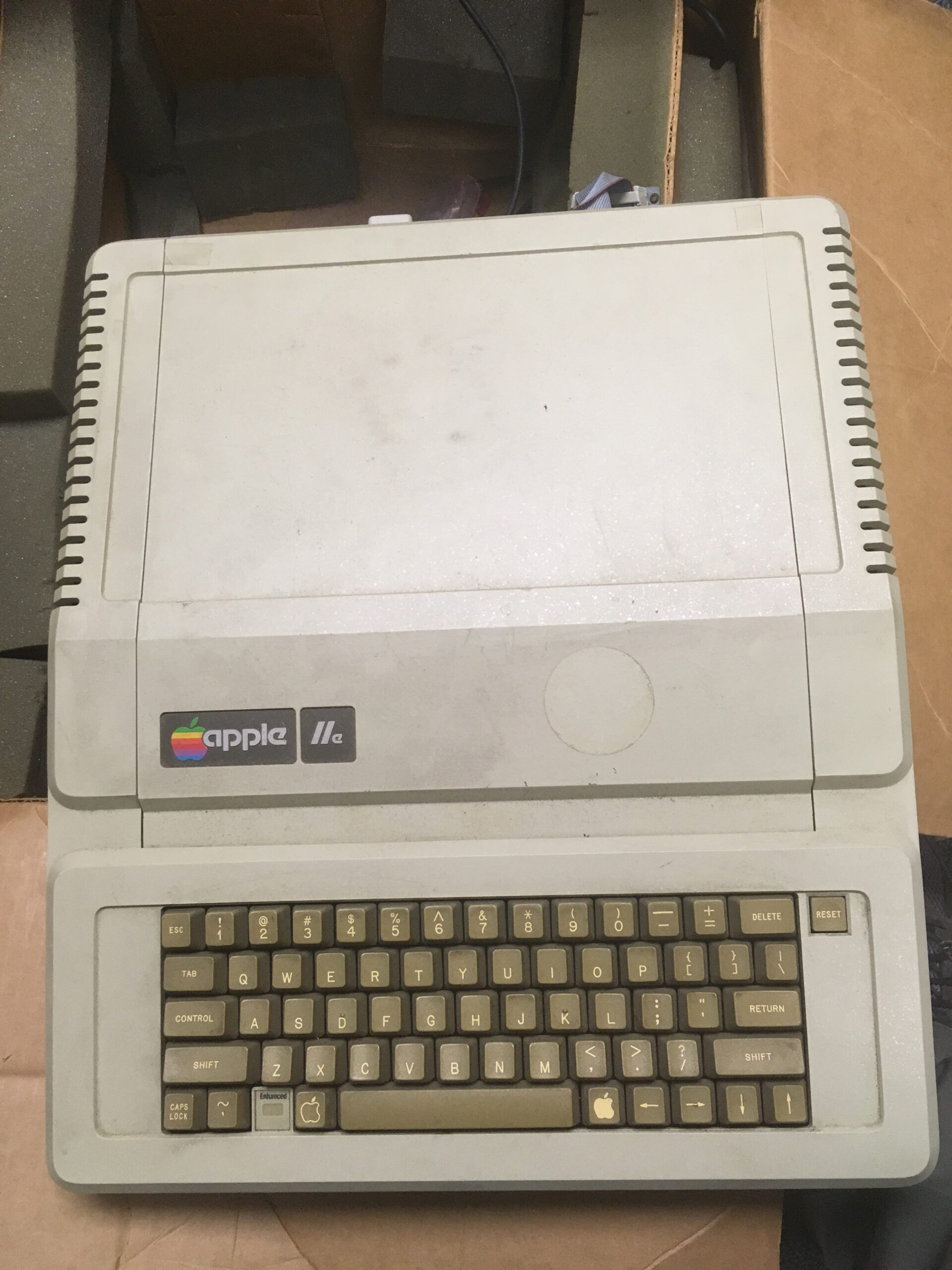

Company: Apple – machines
Identifier: in matching box, has Zip 8000.
Data images:
Current state: Disk I/O card, ZipChip 8MHz. Self-test reports RAM issue but did boot. Not packed with drive.
Slot 2 looks pretty corroded.
Has a ZIP chip 8000 (8MHz) in its CPU slot. Some kind of dongle attached at DIP at C51. Powered on at 8MHz, booted. Self-test reports RAM 000111. PSU makes a weird squeak when turning off.
Had a CMC drive card for a 20MB drive in slot 7, a Sandwich II SCSI card in slot 5, mouse card in slot 4, Workstation Card in slot 1 with its dongle, AE RAM card in aux slot. Had a Waco Command control joystick. All taken out. I/O controller card moved from slot 3 to 6.
Just noting here that I later found a sticker that said 341-0358-A, which probably came off the EPROM window on the Sandwich II card. I probably tried to keep the card and sticker together?
